SKB gear can offer all kinds of gear machining in China, our main products: bevel gear, ring gear and pinion. SKB can offers metallurgy bevel gear and high intensity alloy steel bevel gears.
The main technical characteristics of metallurgy bevel gear:
For industries of Cement, Thermol Power etc.
Surface Hardness: HRC58-62
outside diameter can up to 8000 mm with unlimited modules.
Accuracy: can up to DIN5 according to your requirements.
Metallurgy bevel gear material: 17CrNiMo6 or 20CrMnTi ( Or per your requirements).
We can process perfectly according to your drawing or samples.
Processed by our 5-axis maching Center.
Our metallurgy bevel gear products are widely used in the industries such as Thermal power plants, Cement factories, Oil transfer hoist, Metallurgy, Marine propulsion, Coal Mining, Rail transport, Heavy vehicles and water control etc.
More about metallurgy bevel gear, and if you need any gear custom,you can contact us at any time.
Technical Parameters
Main Product Range
| Name | Diameter | Modulus |
| Spiral bevel Gear | ≤ 2.0M | ≤ 40M |
| Straight Bevel Gear | ≤ 1.6M | ≤ 38M |
| Big Ring Gear | ≤ 6.3M | ≤ 36M |
Calculation formula of the main parameters on standard spur bevel gear
| Name | Code Name | Calculation formula |
| Reference diameter | d | d=mZ |
| Addendum | ha | ha=m |
| Dedendum | ≤ 6.3M | ≤ 36M |
| Tip diameter | ≤ 6.3M | ≤ 36M |

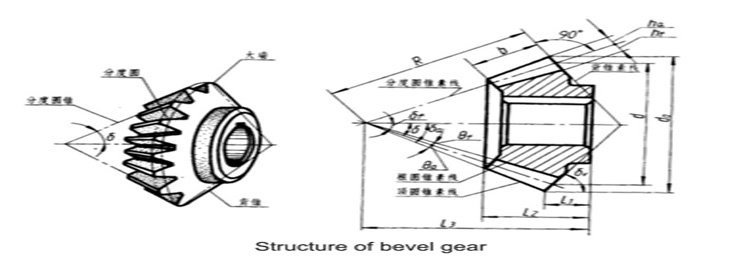

Structure of Bevel Gear
Inspection & Control
we have a comprehensive set of inspection and control tools for quality control, materials analysis, mechanical properties,ultrasonic testing, magnetic particle inspection, bevel gear roll coloring check,three-coordinate precision gear tester etc..
Germany ZEISS three-coordinate precision inspection
Bevel gear contact area(Concave)

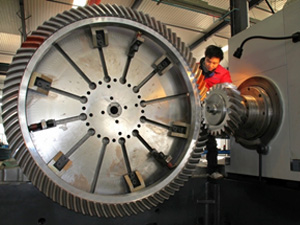

The bevel gear contact area inspection
Bevel Gear Contact Area (Convex)

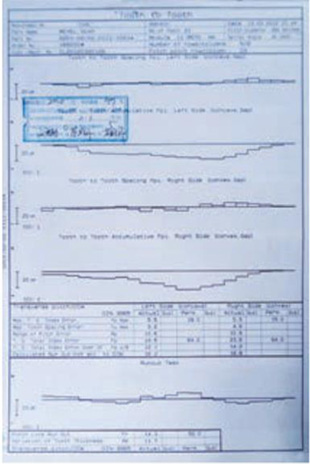

Three-coordinate bevel gear precision inspection report
SKB Services
To ensure better cooperation,our factory provides the following services to the buyers:
1.OEM&ODM:As the special samples and drawings.
2.The small order is acceptable.
3. Professional services
4. Comprehensive and professional after-sale services
We are a supplier of metal material & machinery products. We have extensive experience in the manufacture of Spiral bevel gear,Straight bevel gear and Big Ring gear. Welcome to sending drawings and inquiry.
Production Workflow
-
Material inspection
-
Gear blank machining
-
Gear blank machining
-
Roughing tooth
-
Toothed finishing
-
Keyway / hole, etc.
-
Cleaning
-
Precision gear inspection
-
Heat Treatment
-
Final test
